ALTUMA

Robust luminaire for extreme conditions

Robust

  • Robust design for extreme stable conditions (IP69K, IK10)
  • Ammonia resistance - up to 10 years warranty
  • Corrosion-resistant
  • Easy to clean - suitable for high-pressure cleaners
  • Proven quality - formerly under the name STRONGERTUBE



Ideal application

  • Flicker-free: reduced stress, promotes herd behaviour
  • Meets the lighting requirements for all tasks in the stable
  • Perfect uniformity regardless of ceiling height thanks to wide range of available optics
  • Already installed in over 2,200 stables
  • Lower number of luminaires required

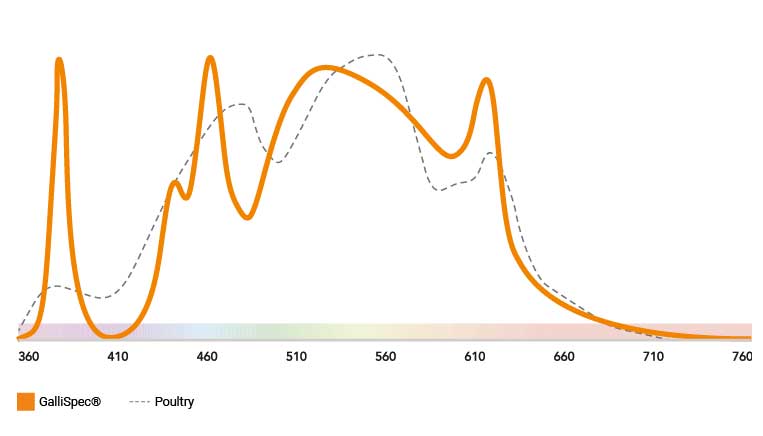

Optimal lighting in poultry farming - GalliSpec

The term “GalliSpec” denotes a special spectra emitted by the luminaire that focus on supporting poultry’s visual perception and biological needs throughout the whole grow phase: More yield through biologically effective light! Other than standard LEDs developed for human beings, pacelum’s GalliSpec-technology emits UV as well as short blue, broad greenish and long red wavelength components.

This helps poultry to easily identify conspecific / fellows as well as fodder and thus reduces stress within the flock.

Learn more in the application broiler

Optimal lighting in poultry farming incl. UV - 4000K + UV

Our neutral white spectrum with additional UV components supports your animals in their visual perception.

Among other factors it contributes to better vision and orientation, which not only facilitates foraging but also positively impacts feed intake.

A further advantage is the improved localisation of conspecifics, which leads to more even distribution in the stable and thus reduces the stress level of your animals in the long term.

Optimal catch light in poultry farming - AzuLux / catchlight

Our "AzuLux" dual-channel solution enables you to control a blue light channel in addition to the white channel. It is also possible to operate both channels simultaneously and thus generate white light with a high blue light component.

Blue wavelengths have a calming effect on the poultry – our luminaire enables you to counteract stressful phases and relax your flock. By activating blue wavelengths, your animals are calmed and their stress level is significantly reduced.

Our "AzuLux" spectrum is also excellent as catch light. This noticeably simplifies the moving in and singling out process for all involved. The lower-stress moving in and singling out leads to fewer injuries and losses in your stable.

Optimal lighting in turkey farming - RubiLux

Turkey breeding

Our "RubiLux" dual-channel solution enables you to control a red light channel in addition to the white channel. It is also possible to operate both channels simultaneously and thus generate white light with a high red light component. Red wavelengths stimulate the circadian rhythm of the animals and thus also their activity behaviour. Mutual "pecking" unfortunately repeatedly takes place especially in turkey breeding. Our "Anti-Pick" solution helps you directly in two ways: on the one hand the pecking is counteracted by a low stress level, and on the other the red light takes away the contrast in bloody injuries as well as in the development of the snood. The sickness level and mortality rate are thus significantly reduced.

Laying hens

In addition to turkey breeding, our "RubiLux" solution is also gaining increasing popularity in laying hen stables. The red wavelengths stimulate the animals and provide a relaxed atmosphere – this leads to increased egg laying with reduced stress levels. Another method of promoting animal welfare is the simulation of dawn and dusk, which is also no longer a problem thanks to our "RubiLux" solution.

Pig breeding

In pig farming you can use our "RubiLux" solution as night light – because pigs hardly perceive red wavelengths. This allows you to enter the stable without waking up the animals by switching on the light. By simulating sunrise and sunset you can also support the day-night rhythm of the animals, thus reducing levels of stress and aggression.

Optimal lighting in pig breeding - PigLux

Suitable illuminance forms the basis for ethical pig farming. As with humans, this need for light in animals changes according to their age or breeding stage. Our luminaires are specifically adapted to the life cycle of the animals and thus always meet the current lighting requirement.

The improved visual perception of the animals ensures, among other factors, a significantly lower level of stress and aggression. This in turn increases the well-being and performance capability of your pigs.

This is exactly where our Pig-Light spectrum comes in; specially selected LED chips form the basis for the biological effect of our luminaires.

Portfolio

Standard
l = 1.340 mm
h = 123 mm
w = 117 mm
weight = max. 4,4 kg

Short
l = 780 mm
h = 123 mm
w= 117 mm
weight = max. 3,4 kg

Poultry

GalliSpec ®

TK Number Designation Power [W] Dimensions [mm] Luminous flux [lm] Color code Control Connection Data sheet
10228094 MXB 50-CCL ETDD 1CH GalliSpec 45 1340 x 112 x 112 mm 5000 CCL ETDD (DALI) single sided (5x1.5)
  • Download
  • 10228121 0.7 MXB 28-CCL ETDD 1CH GalliSpec 25 779 x 112 x 112 mm 2800 CCL ETDD (DALI) single sided (5x1.5)
  • Download
  • 10228120 MXB 50-CCL ETDD 1CH TWW GalliSpec 45 1340 x 112 x 112 mm 5000 CCL ETDD (DALI) single sided (5x1.5)
  • Download
  • 10228119 MXB 50-CCL ETDD 1CH LV TWW GalliSpec 45 1340 x 112 x 112 mm 5000 CCL ETDD (DALI) two-sided, terminal block
  • Download
  • Dynamic lighting

    TK Number Designation Power [W] Dimensions [mm] Luminous flux [lm] Color code Control Connection Data sheet
    10228097 MXB 65-940 ETDD AzuLux 45 1340 x 112 x 112 mm 5300 W2B ETDD (DALI) single sided (5x1.5)
  • Download
  • 10228098 MXB 65-930 ETDD RubiLux 45 1340 x 112 x 112 mm 5600 W2R ETDD (DALI) single sided (5x1.5)
  • Download
  • 10228107 MXB/TB 65-830 ETDD 2CH 49 1340 x 112 x112 mm 6500 830 ETDD (DALI) single sided (5x1.5)
  • Download
  • 10228096 MXB 60-750 ETDD GrowSpec 51 1340 x 112 x 112 mm 6000 G2B ETDD (DALI) single sided (5x1.5)
  • Download
  • * the luminous flux is only given for the white / main channel

    Static lighting

    TK Number Designation Power [W] Dimensions [mm] Luminous flux [lm] Color code Control Connection Data sheet
    10227947 MXB 60-840 ETDD 0,1% 44 1340 x 112 x 112 mm 6000 840 ETDD (DALI) single sided (5x1.5)
  • Download
  • 10228103 MXB 65-840 ETDD 45 1340 x 112 x 112 mm 6500 840 ETDD (DALI) single sided (5x1.5)
  • Download
  • 10228104 MXB 65-830 ETDD 45 1340 x 112 x 112 mm 6500 830 ETDD (DALI) single sided (5x1.5)
  • Download
  • Pig

    TK Number Designation Power [W] Dimensions [mm] Luminous flux [lm] Color code Control Connection Data sheet
    10237185 MXB 65-940 ETDD 2CH PigLux 66 1340 x 112 x 112 6500 PCL ETDD (DALI) single sided (5x1.5)
  • Download
  • 10228101 XB 60-840 ET 45 1340 x 112 x 112 mm 6000 840 ET (switchable) single sided (5x1.5)
  • Download
  • 10228109 XB 60-850 ET 44 1340 x 112 x 112 6500 850 ET (switchable) single sided (5x1.5)
  • Download
  • Cattle

    TK Number Designation Power [W] Dimensions [mm] Luminous flux [lm] Color code Control Connection Data sheet
    10248489 B 60-850 ETDD 2CH LactoLux 45 1340 x 112 x 112 mm 6000 W2B ETDD (DALI) single sided (5x1.5)
  • Download
  • 10248988 B 65-930 ETDD RubiLux 45 1340 x 112 x 112 6500 W2R ETDD (DALI) single sided (5x1.5)
  • Download
  • 10228114 B 65-950 ETDD 45 1340 x 112 x 112 mm 6500 950 ETDD (DALI) single sided (5x1.5)
  • Download
  • 10232824 1.8 B 64-950 ETDD SoLux 69 1862 x 112 x 112 mm 6400 950 ETDD (DALI) single sided (5x1.5)
  • Download
